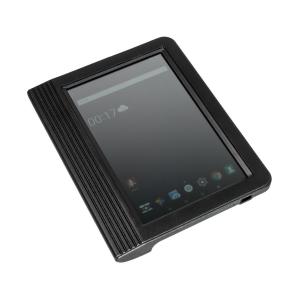

Launch X431 V+ with Bluetooth/Wifi is based on Android system, is a
new car malfunction diagnostic device developed by Launch Tech for
internet application.
2018 Launch X431 Scanner V+ X431 PRO3 Global Version WIFI and
Bluetooth Diagnostic With Multi-language
Highlights
1. Supported Languages: English, German, French, Italian, Spanish,
Portuguese, Polish, Russian, Japanese, Traditional Chinese
2. Wi-Fi: Supported
3. Bluetooth: Supported
4. Dealer Code: 86A
5. One click update: You do not have to download software to memory
card anymore, can do one click update directly through your
machine.
6. There is the Manual in the Multiplexer, you can check it when
you use the device. it is in " cnlaunch" file.
7.X-431 V+ completely substitutes X431 IV and X431 Diagun III.
What are the advantanges of X431 V+ ?
1. HUAWEI HiSilicon Quod-core 1.4G HZ, speed faster.
2. 2GB memory and 16GB storage for data.
3. Contain 72 car brand from USA, European, Asia and so on.
4. Support wifi/bluetooth and one click update, make your update job
much easier.
5. 700mAh Li battery can let you continue work 8 hours.
6. Original goods with full time technical service and guarantee.
7. 10.1 inch IPS multi touch capacitor screen give you better view
for diagnose and data stream.
X431 V+ Description
X-431 V+ is taking the advantage of mobile internet, can share
maintenance data and case library, provide instant maintenance
information, and build public and private maintenance social
circle,etc.,thus lead to wide car diagnostic community.
It is a typical diagnostic device contributed by Launch to
diagnostic industry concerning internet application.
X431 V+ Product Features
- Panel PC: High configuration of hardware , fast running speed
- Capacitor Screen: Multi-touch capacitor screen, more smooth
operation
- WIFI Diagnosis: Wireless communication between intelligent mobile
terminal and DBSCar connector via Bluetooth
- Portable: Reasonable PDA design, small size for easy carry
- Optimized Interface: Brand new operation interface design,
interface more friendly and operation much easier
- Wifi communication: Support WIFI network
- Android System: Users can install and Android software
- Numerous Additional Functions: Photo, video, multimedia, other
software application,etc.
X-431 V+ Product Parameters
● Operating system: Android 7.1
● Display: 10.1" IPS/1280X800
● CPU: 1.4GHz Quad core
● RAM: 2GB
● ROM: 16GB
● Printer: Optional Wi-Fi printer
● Camera: Rear 5mp
● Battery: 7,000 mAh
● Size: 264X210X30mm
● Heavy duty module(12V/24V): optionalDBSCar Connector Parameters
- Connection: Standard OBDII Interface, Micro USB 2.0
- Typical Power Consumption:(12V)Static current 25 mA,
- overall unit average current 35 mA
- Working Temperature: - 20 °C~6 0°C
- Storage Temperature: -30°C~70°C
- Working Voltage: powered by vehicle battery, DC 9V-15V

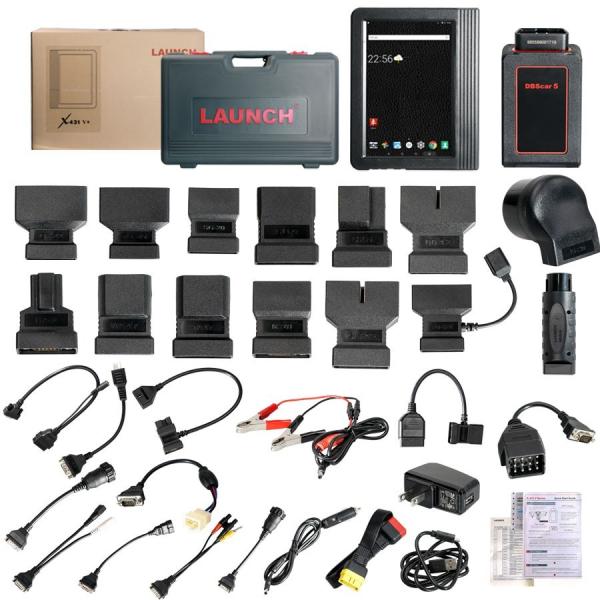

Package List
| X-431 diagnosis of V+ configuration Packing List |
|
| No. | Part category | Part No. | Part name | Quantity |
| 1 | Main unit | 201025167 | X-431 V+ American host, RoHS | 1 |
| 2 | Connector | 203010559 | DBScar Android edition diagnostic connector (10 meters Bluetooth) | 1 |
| 3 | | 203010549 | DBScar, BENZ-38 diagnostic connector | 1 |
| 4 | | 105040059 | DBScar, DAEWOO-12 diagnostic connector integrated | 1 |
| 5 | | 105040078 | DBScar,AUDI-4 diagnostic connector linear | 1 |
| 6 | | 105040083 | DBScar,BENZ-14 diagnostic connector linear | 1 |
| 7 | | 105040072 | DBScar,BMW-20 diagnostic connector integrated | 1 |
| 8 | | 105040067 | DBScar,CHRYSLER-6 diagnostic connector integrated | 1 |
| 9 | | 105040085 | DBScar,DAIHATSU-4 diagnostic connector linear | 1 |
| 10 | | 105040079 | DBScar,FIAT-3 diagnostic connector linear | 1 |
| 11 | | Y203010554 | DBScar,-6+1 diagnostic connector integrated | 1 |
| 12 | | 105040080 | DBScar,GAZ diagnostic connector linear | 1 |
| 13 | | 105040065 | DBScar,GEELY-22 diagnostic connector integrated | 1 |
| 14 | | 105040074 | DBScar,GM/VAZ-12 diagnostic connector integrated | 1 |
| 15 | | 105040060 | DBScar,HONDA-3 diagnostic connector integrated | 1 |
| 16 | | 105040068 | DBScar,KIA-20 diagnostic connector integrated | 1 |
| 17 | | 105040063 | DBScar,MAZDA-17 diagnostic connector integrated | 1 |
| 18 | | 105040076 | DBScar,MITSUBISHI/HYUNDAI-12+16 diagnostic connector | 1 |
| No. | Part category | Part No. | Part name | Quantity |
| 19 | Connector | Y203010556 | DBScar,NISSAN-14+16 diagnostic connector | 1 |
| 20 | | 105040082 | DBScar,SSANGYONG-14 diagnostic connector linear | 1 |
| 21 | | 105040070 | DBScar,SSANGYONG-20 diagnostic connector integrated | 1 |
| 22 | | 105040069 | DBScar,SUBARU-9 diagnostic connector integrated | 1 |
| 23 | | 105040084 | DBScar,SUZUKI-3 diagnostic connector linear | 1 |
| 24 | | 105040062 | DBScar,TOYOTA-17 diagnostic connector integrated | 1 |
| 25 | | 105040064 | DBScar,TOYOTA-22 diagnostic connector integrated | 1 |
| 26 | | 105040081 | DBScar,UNIVERSAL-3 diagnostic connector linear | 1 |
| 27 | Test cable | 105021033 | DBScar, OBDⅡ -16 extension 135mm, RoHS | 1 |
| 28 | | 105020989 | DBScar,OBD I Adaptor BOX switch wiring | 1 |
| 29 | | Y203010242 | LIGHTER | 1 |
| 30 | | Y203010270 | CLIPPER | 1 |
| 31 | Accessories | 108040175 | MicroSD card, SanDisk 32G capacity, RoHS | 1 |
| 32 | | 107022213 | X431 PIN envelope | 1 |
| 33 | | 102150010 | Clipper fuse 5*20mm | 4 |
| 34 | | 102150012 | Lighter fuse 6*30mm | 2 |
| | | | |
| No. | Origin | Software Name | Version | Code |
| 1 | - | Demo Software | V14.62 | X109020277 |
| 2 | | Smart OBDII diagnostic software | V22.16 | X109020181 |
| 3 | America | America diagnostic software | V42.80 | X109020250 |
| 4 | | Chrysler diagnostic software | V28.14 | X109020252 |
| 5 | | GM diagnostic software | V43.40 | X109020251 |
| 6 | | X431, Acura Diagnostic Software | V10.51 | X109021187 |
| 7 | | X431, INFINITI Diagnostic Software | V10.50 | X109021183 |
| 8 | | X431, Lexus Diagnostic Software | V11.01 | X109021186 |
| 9 | Australia | Australia diagnostic software | V25.13 | X109020255 |
| 10 | | Holden diagnostic software | V42.00 | X109020253 |
| 11 | China | Brilliance Auto diagnostic software | V30.01 | X109020580 |
| 12 | | BYD diagnostic software | V17.31 | X109020200 |
| 13 | | Changan vehicle diagnostic software | V15.01 | X109020234 |
| 14 | | ChangCheng diagnostic software | V32.01 | X109020210 |
| 15 | | Changhe diagnostic software | V20.02 | X109020233 |
| 16 | | Chery diagnostic software | V55.71 | X109020302 |
| 17 | | GEELY diagnostic software | V21.20 | X109020224 |
| 18 | | Gonow Auto diagnostic software | V13.21 | X109030043 |
| 19 | | HaFei diagnostic software | V25.01 | X109020228 |
| 20 | | JAC car diagnostic software | V18.03 | X109021002 |
| 21 | | Jiangling diagnostic software | V12.33 | X109020229 |
| 22 | | SGMW diagnostic software | V20.11 | X109020232 |
| 23 | | Tianjin FAW diagnostic software | V16.41 | X109020197 |
| 24 | | Xiamen Golden diagnostic software | V13.01 | X109020220 |
| 25 | | XinKai Diagnostic software | V11.02 | X109020221 |
| 26 | | ZhongShun diagnostic software | V12.03 | X109020386 |
| 27 | | Zhongxing diagnostic software | V21.02 | X109020212 |
| 28 | | ZOTYE diagnostic software | V17.11 | X109020625 |
| 29 | Europe | Audi diagnostic software | V26.40 | X109020430 |
| 30 | | Benz diagnostic software | V46.50 | X109020174 |
| 31 | | BMW diagnostic software | V46.90 | X109020175 |
| 32 | | Citroen diagnostic software | V40.62 | X109020303 |
